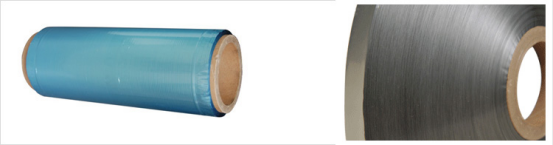

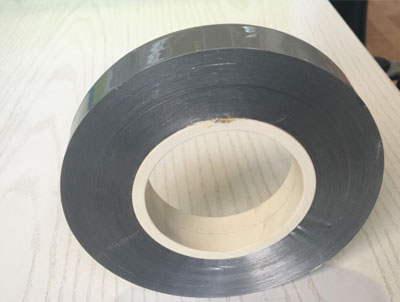

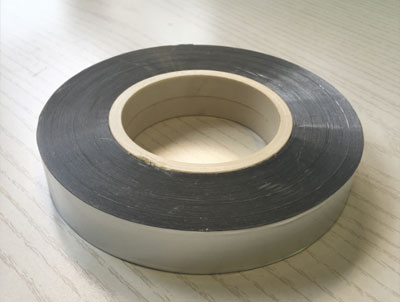

Aluminum polyester tape made of aluminum foil and polyester film. PET film provides electrical insulation and high mechanical strength.
Advantage
◆ Low cost, professional production process
◆ New and good quality basic material of aluminum foil and polyester film
◆ Act well as electronical and EMC shielding and insulation
◆ Wide range of application and easy to use
◆ RoHS and SGS standard
Application

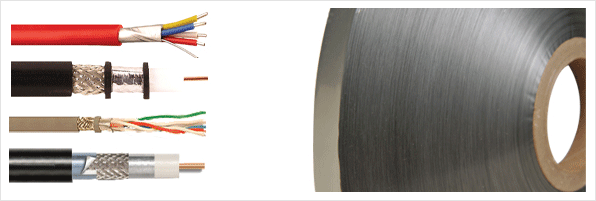

◆ Aluminum polyester tape is mainly used on coaxial cables, signal cables, control cables, instrumentation cables, LAN cables, data communication cables, and most of the other communication cables.
◆ Aluminum polyester tape is also used in Ventilation Industry for flexible duct pipe production,Electronic, Estate Construction and so on.
Size
| Thickness |
Width |
Length |
OD |
ID |
| 0.01mm-0.3mm |
3mm-1300mm |
1000m-30000m |
100mm-1000mm |
52mm/76mm |
Color
Original color, siliver, blue, red,yellow,green etc.
Other colors is available.
Package
PAD: Max. O.D.: 1000mm
Spool：Normal : 300mm(length)*300mm(high)
Different packaging can be customized.
Technical Data Sheet
| Construction |
Tatal thickness |
Weight（g/m2） |
Yield(m2/kg) |
| AL9 PET12 |
24 mic |
44 |
22.7 |
| AL9 PET15 |
27 mic |
48 |
20.8 |
| AL9 PET19 |
31 mic |
54 |
18.5 |
| AL9 PET23 |
35 mic |
60 |
16.7 |
| AL12 PET12 |
27 mic |
53 |
18.9 |
| AL12 PET15 |
30 mic |
57 |
17.5 |
| AL12 PET19 |
34 mic |
62 |
16.1 |
| AL12 PET23 |
38 mic |
68 |
14.7 |
| AL12 PET36 |
51 mic |
88 |
11.4 |
| AL15 PET19 |
37 mic |
70 |
14.3 |
| AL25 PET12 |
40 mic |
88 |
11.4 |
| AL25 PET23 |
51 mic |
103 |
9.7 |
| AL40 PET12 |
55 mic |
128 |
7.8 |
| AL40 PET15 |
58 mic |
132 |
7.6 |
| AL40 PET23 |
66 mic |
144 |
6.9 |
| AL40 PET36 |
79 mic |
162 |
6.2 |
| AL50 PET12 |
65 mic |
155 |
6.5 |
| AL50 PET15 |
68 mic |
160 |
6.3 |
| AL50 PET23 |
76 mic |
171 |
5.8 |
| AL50 PET36 |
89 mic |
189 |
5.3 |
| Construction |
Total thickness |
Weight（g/m2） |
Yield(m2/kg) |
| AL9 PET12 AL9 |
35 mic |
70 |
14.3 |
| AL9 PET15 AL9 |
38 mic |
75 |
13.3 |
| AL9 PET19 AL9 |
42 mic |
80 |
12.5 |
| AL9 PET23 AL9 |
46 mic |
86 |
11.6 |
| AL12 PET15 AL12 |
44 mic |
91 |
11 |
| AL12 PET23 AL12 |
52 mic |
102 |
9.8 |
| AL20 PET12 AL20 |
57 mic |
130 |
8 |
| AL25 PET12 AL25 |
67 mic |
157 |
6 |
Note: Above values are the accumulative typical ones by recognized test method,but ensure you to select our products properly,please feel free to contact us for more details.
