Product Description

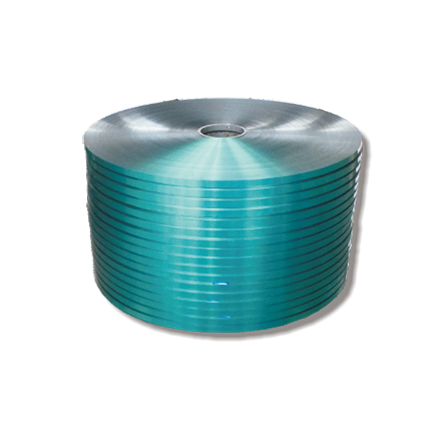

Copolymer coated steel tape consists of steel tape coated on one side or both sides with an adherent ethylene copolymer. The copolymer exhibits excellent adhesion to the steel substrate and has the chemical resistance and general characteristics of lower density poly-ethylene. It bonds to low, LLDPE, MDPE and HEPE. The steel is low carbon electronic chrome-coated steel tempered to T-2 condition for excellent formability and fabrication characteristics.

Technical Data Sheet

	Property	Unit	Values	Method
Color			Natural or Green
Thickness	Steel	0.15 / 0.20	mm
	EAA	0.05	mm
Tensile Strength		MPa	≥300	ASTM E8
Elongation		%	≥15	ASTM E8
Peel strength		N/cm	≥6.13	ASTM B736
Heat Seal strength		N/cm	≥17.5	ASTM B736
Corrosion resistance		Grade	7	-------
Filler / Flood Resistance 68 deg C/168 hrs		-------	No Delamination	PEA PE-39, PE-89
Water Resistance 68 deg C/168 hrs, Peel Strength 68℃		N/cm	≥6.13	ASTM B736
Dielectric Strength Two-Side, DC 1Kv, 1min		-------	No Break	-------

Package

Inner Diameter	Width	Outer Diameter	Roll core material
76/150/406mm	10mm-1000mm	Customized	paper/steel/plastic cire

Storege

Keep the warehouse clean. Avoid exposure to direct sunlight, pollution and all damage cuased by external forces.

Handling

Skilled operators should take or lay the materials gently, avoid scrap and crash problems.

Remark

The above mentioned data sheet should, however, only be regarded as a general guide to product properties and not as a guarantee. Some of the properties can be changed as a result of our efforts to improve the quality of our products. All listed test method is just for reference, actual test performed according to modified equipment and conditions.
